Tuya Smart Home Wifi Video Intercom Access Control Keypad RFID Electric Door Control System With Camera For Apartment Home+Cover
$89.99$130.8931% off
This deal will end in
Video Intercom Access Control System Tuya Smart & Smartlife APP WIFI Door Peep Camera Intercom For Home Door Remotely Control
The device is Touch key Access Controller with WiFi-enabled Intercom. People can install the APP for intercom with their smart phone, and program the access controller by touch key. It is compatible with both iOS (7.0 above) and Android (4.3 above)
WIFI Video Intercom Access Control
Intercom
> 2.4G WiFi connection,
> Android and iOS available
> Full duplex voice intercom
> 2MP+wide angle camera and night vision
> Support TF card with unlimited capacity
> Support motion detection, playback, take picture/video, unlock remotely
Access Control
> Touch key with one relay, 1000 users (988 common+2 panic+10 visitor)
> PIN Length: 4~6 digits
> EM card, Mifare card optional
> Wiegand 26~44 bits in put & output
> Can be used as Wiegand reader with LED & buzzer
> User data can be transferred
> 2 devices can be interlocked for 2 doors
Video Intercom | Network | 2.4GWiFi connection |
Pixel | 2.0Mpx (1080P) | |
Visual Angle | Horizontal 140° wide angle | |
Night Vision | IR-CUT (Colorful at daytime, black and white at night) | |
Extended Memory | TF card with unlimited capacity | |
Intercom | Full duplex voice intercom | |
Other Functions | Motion detection; Playback; Take picture/video; Unlock remotely | |
Access Control | User Capacity | 1000 |
Common User | 988 | |
Visitor User | 10 | |
Panic User | 2 | |
PIN Length | 4~6 digits | |
ProximityCard Reader | EM or (Mifare customizable) | |
Radio Technlogy | 125khz （default）/ 13.56mhz（customizable） | |
Read Range | 2~6cm | |

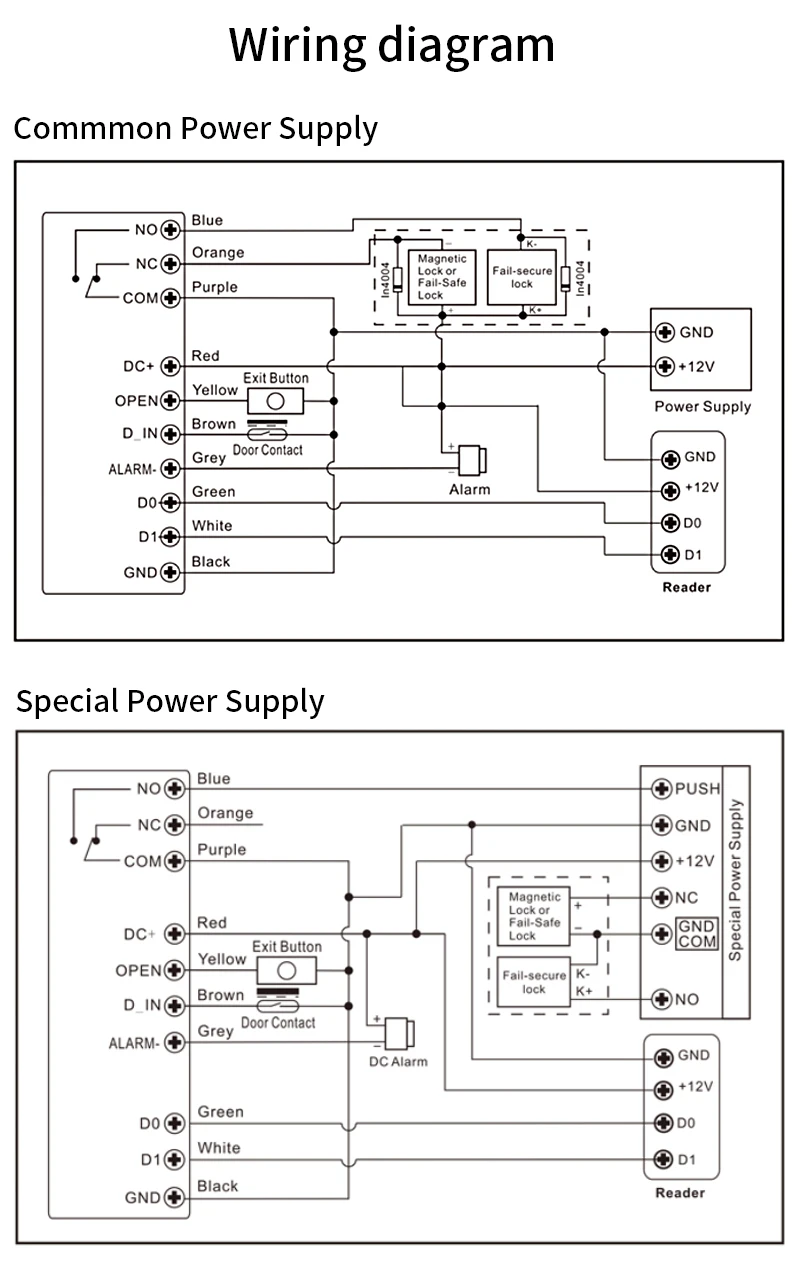

Wiring Connections | Relay output, exit button, alarm, door contact, Wiegand input/output | |
Relay | One (NO, NC, Common) | |
Adjustable Relay Output Time | 0~99 Seconds (5 seconds default) | |
Lock Output Load | 2 Amp Maximum | |
Wiegand Interface | EM card version: Wiegand 26~44 bits input & output(Factory default: Wiegand 26bits) | |
Mifare card version:Wiegand 26~44 bits input & output(Factory default: Wiegand 34bits) | ||
PIN Output | 4 bits,8bits (ASCII),10 digits Virtual Number(Factory default:4bits) | |
Electric | Operating Voltage | DC 12V |
Idle Current | ≤ 150mA | |
Active Current | ≤ 250mA | |
Environment | Indoor | |
Operating Temperature | -20°C ~ 60°C (-4°F ~ 140°F) | |
Operating Humidity | 0%RH ~ 86%RH | |
Physical | Zinc-Alloy | |
Color | Sliver & Black | |
Dimensions | L149x W70x H25(mm) | |
Unit Weight | 500g | |
Shipping Weight | 550g |
